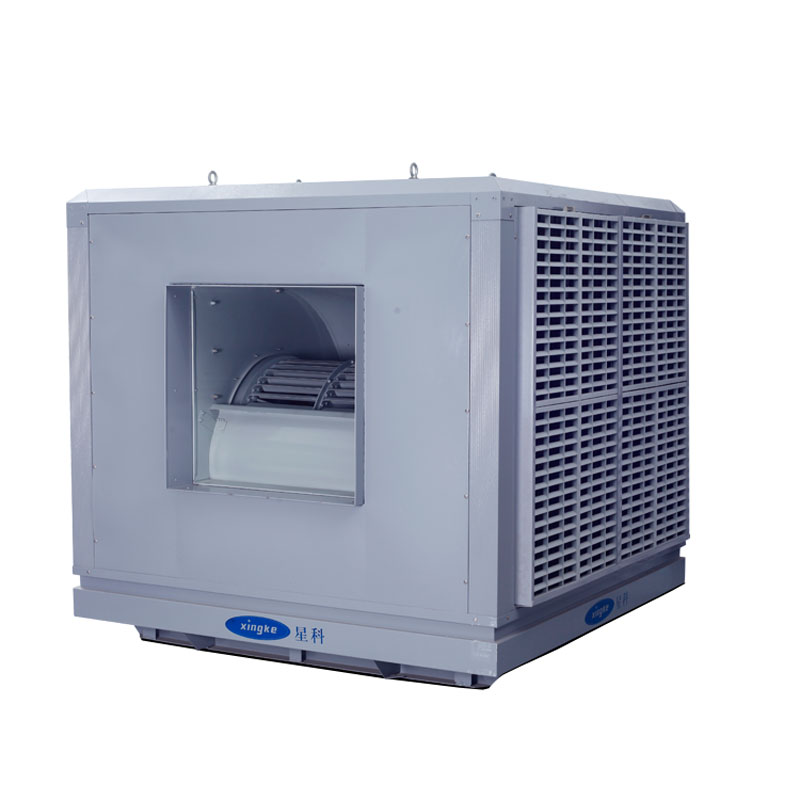

מצנן מים אווירMunters  Evaporative Air Cooler Side 30000-50000 m³/h

Product Overview:
1. Adopt belt gearing centrifugal fan.
2. Suitable for large workshop, Applicable to cool a 150~300m2 plant in humid area and a 200~500m2 plant in dry area.
3. With large airflow and air pressure.
4. The air delivery distance is more than 50m.
5. 201# or 304# Stainless steel shell, solid and durable.
6. High efficient evaporator, high evaporate rate, good cooling down effect.

Product Description




ModelAirflowVoltage/HzPowerWind PressureN.W.NoiseAir Delivery(pipeline)

Air Output

XK-30S30000m³/h380/50Hz5.5Kw406-505Pa300Kgs

<100dB

30-55m

620*570mm

XK-35S35000m3/h7.5Kw450-610Pa350Kgs

<100dB

40-60m

780*702mm

XK-45S45000m3/h11Kw515-703Pa400Kgs

<100dB

50-70m

858*764mm

XK-50S50000m3/h15Kw616-790Pa450Kgs

<100dB

50-100m

926*834mm

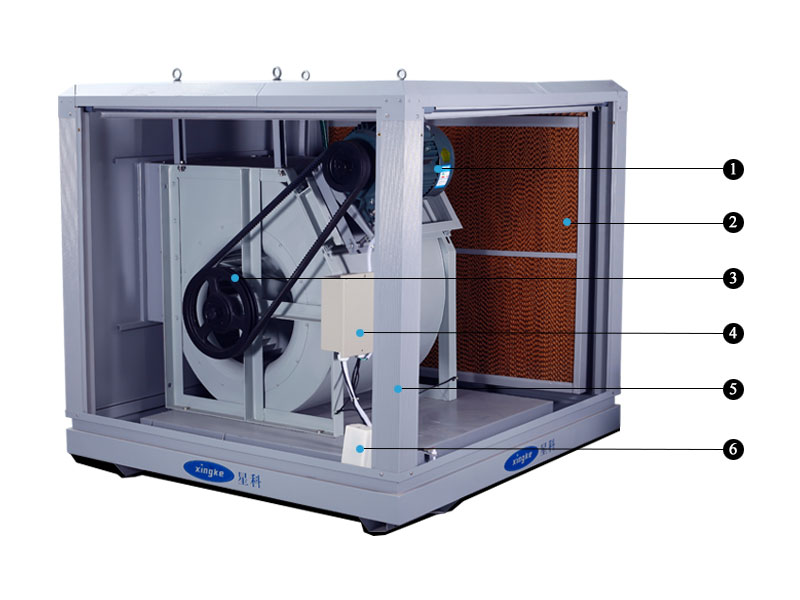

1. Cast iron motor body

2. 100mm thickness 5090# cooling pads.

3. Centrifugal Fan

4. Control System.

5. Body case.

6. Water pump and drain pump.
1. Cast iron motor body. Anti-corrosion. 100% copper-wire motor winding. Water-proof Rate IP 54,INS Class B. Long working lifetime, 2 years warranty. Power:5.5KW,7.5KW,11KW,15KW, 18.5KW…32KW.

4. Control system. Flame-retardant PCB control box. Damp proof, fast heat dissipation. LCD display with remote controller. All kinds of protection function. (380V: Printed circuit board, one wind speed.)

2. Cooling Pads.100mm thickness 5090# cooling pads. Raw material from Jia Mu Si, deodorant treatment, more than 80% evaporate rate. Perfect edge protection, 3 years warranty.

5. Body case.Spraying 201#stainless steel material. Anti-Corrosion, Anti-Rust, Better Heat-resistant performance.

3. Centrifugal fan. Belt-drive centrifugal fan Zinc coating centrifugal fan and volute. Anti-rust,Anti-Corrosion Stainless steel fastener,make sure stable operation.

6. Water pump and drain pump. Ceramic shaft submersible pump. Barrier-free mechanical drain pump, corrosion resistance and efficient performance, 30000 hours continuously working life.
